SPECS
ROOM

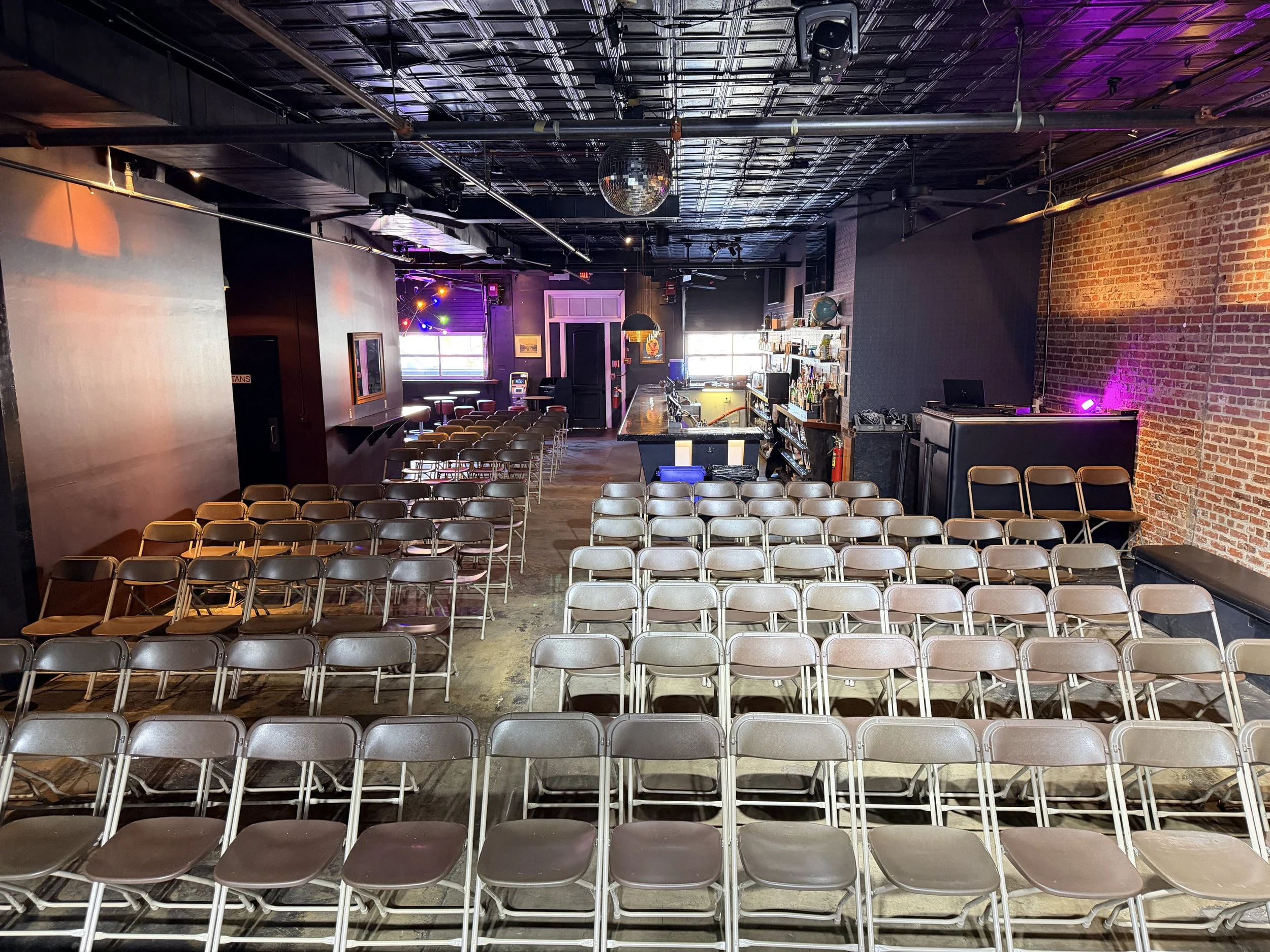

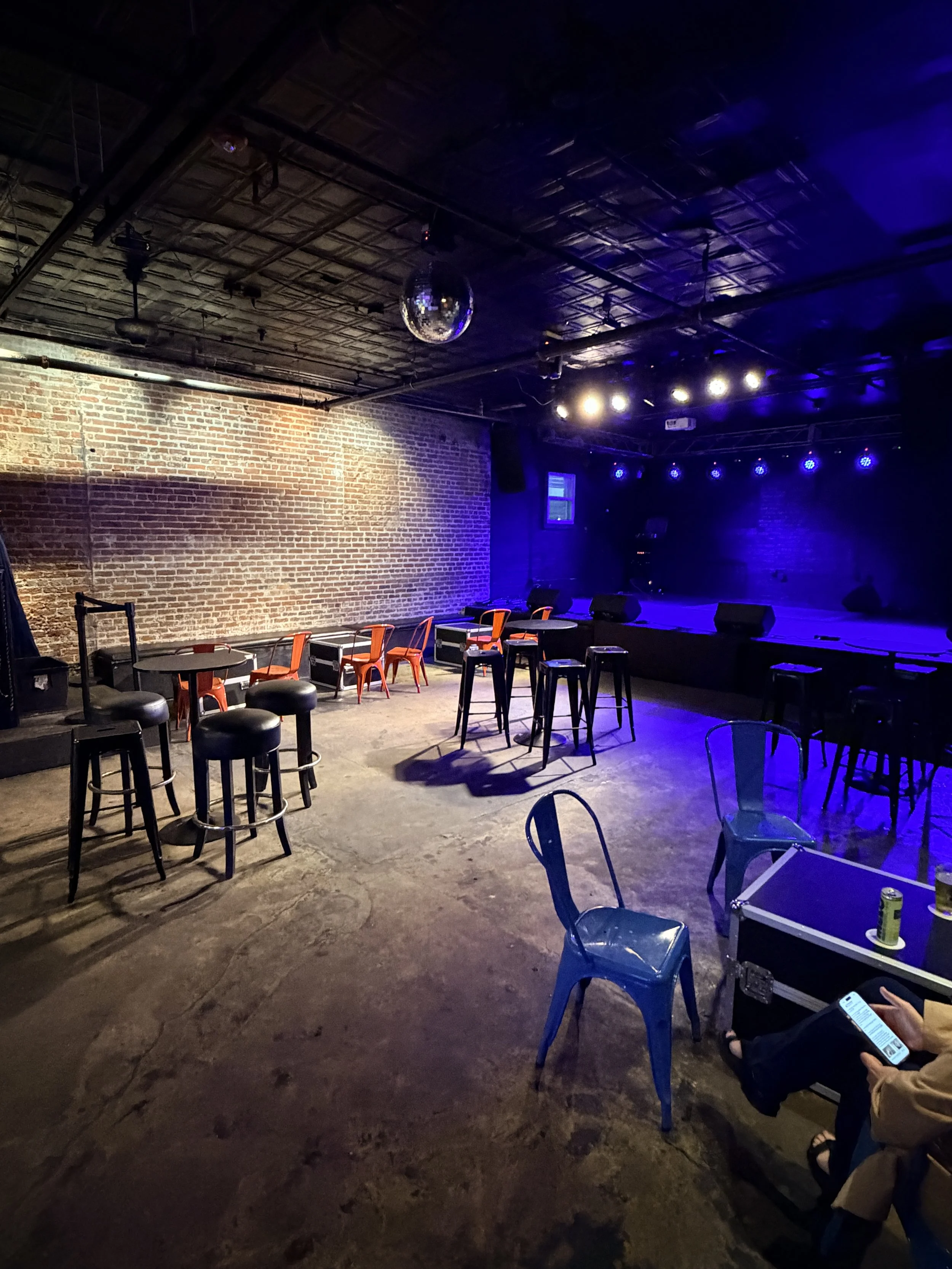

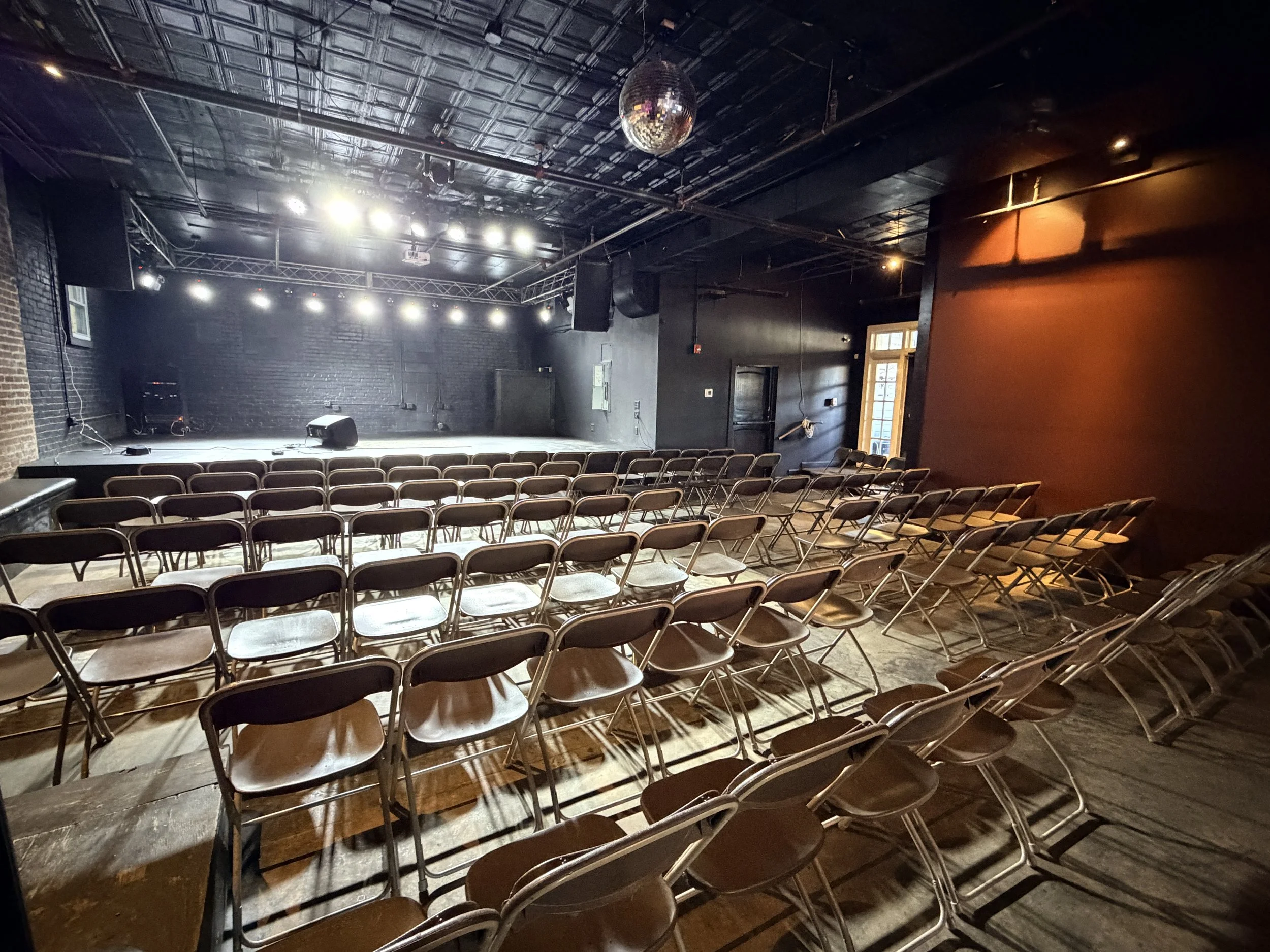

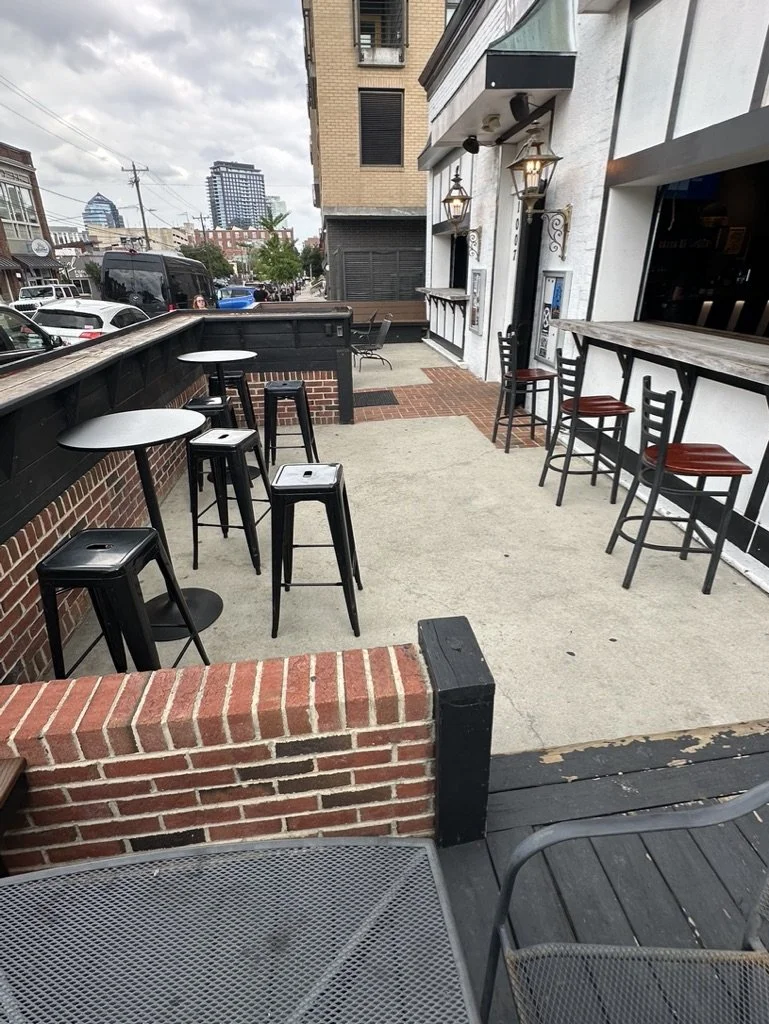

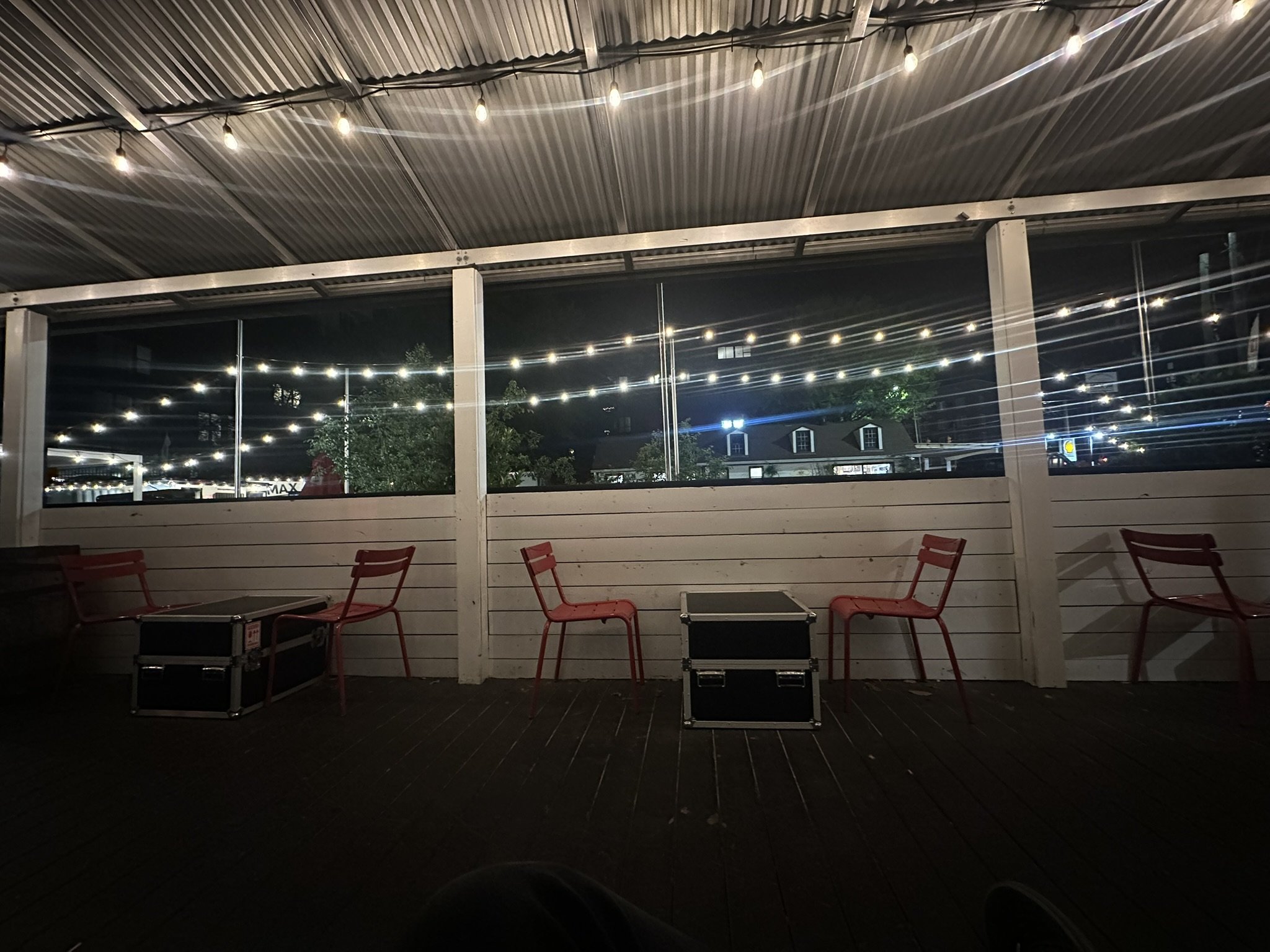

300 capacity general admission standing room venue (150 capacity with seating). Our total inside square footage is 3000 sq/ft and our front patio plus our outside veranda is 800 sq/ft.
STANCZYKS AUDIO SPECS
MAINS
(2) JBL SRX835P 2000W-Peak 15” 3-Way Speaker
SUBS
(2) JBL SRX828SP 2000W-Peak Dual 18” Subwoofer
CONSOLE
(1) Behringer X32 Digital 32-Channel Mixer Console
(1) iPad Controller
ROUTING
(1) Behringer S32 32-Channel Digital Snake
(1) Livewire 16-Channel Analog XLR Snake w/ 1/4” Returns
(1) ProCo StageMASTER 8-Channel Analog XLR Snake w/ 1/4” Returns
(1) ProCo SMA Series 4-Channel Analog XLR Snake
MONITORS
(4) Alto TS412 2500W-Peak 12” 2-Way Floor Monitor
(1) Alto TS415 2500W-Peak 15” 2-Way Floor Monitor
MAIN MICROPHONES
(5) SM57
(4) SM58
(3) Sennheiser e609 silver
(5) Sennheiser e604
(1) Audix D6
(3) Audio-Technica PRO 37
DI
(3) Radial Pro DI Passive Direct Box
(1) Radial Pro D2 Passive Stereo Direct Box
(1) Radial Pro AV Multi Media DI
STANDS
(10) DR PRO Boom Stand
(6) DR Pro Short Boom Stand
(2) Low Profile Boom Stand
STANCZYKS VISUAL SPECS
PROJECTION
(1) ViewSonic LS740W 5000-Lumen WXGA Laser DLP Projector
(1) 10’ Screen
STAGE DIMENSIONS
Width: 23 ft
Depth: 16.5 ft
Height: 25in
LIGHTING CONSOLE
Primary Control: Show Buddy (PC-based)
Output Protocols: Art-Net (primary) / sACN (optional)
Connection Methods: Wi-Fi or Cat6 Ethernet
DMX Universes: 2 total — 1 used by house, 1 available for guest control
Control Locations: FOH (back of house) and On Stage

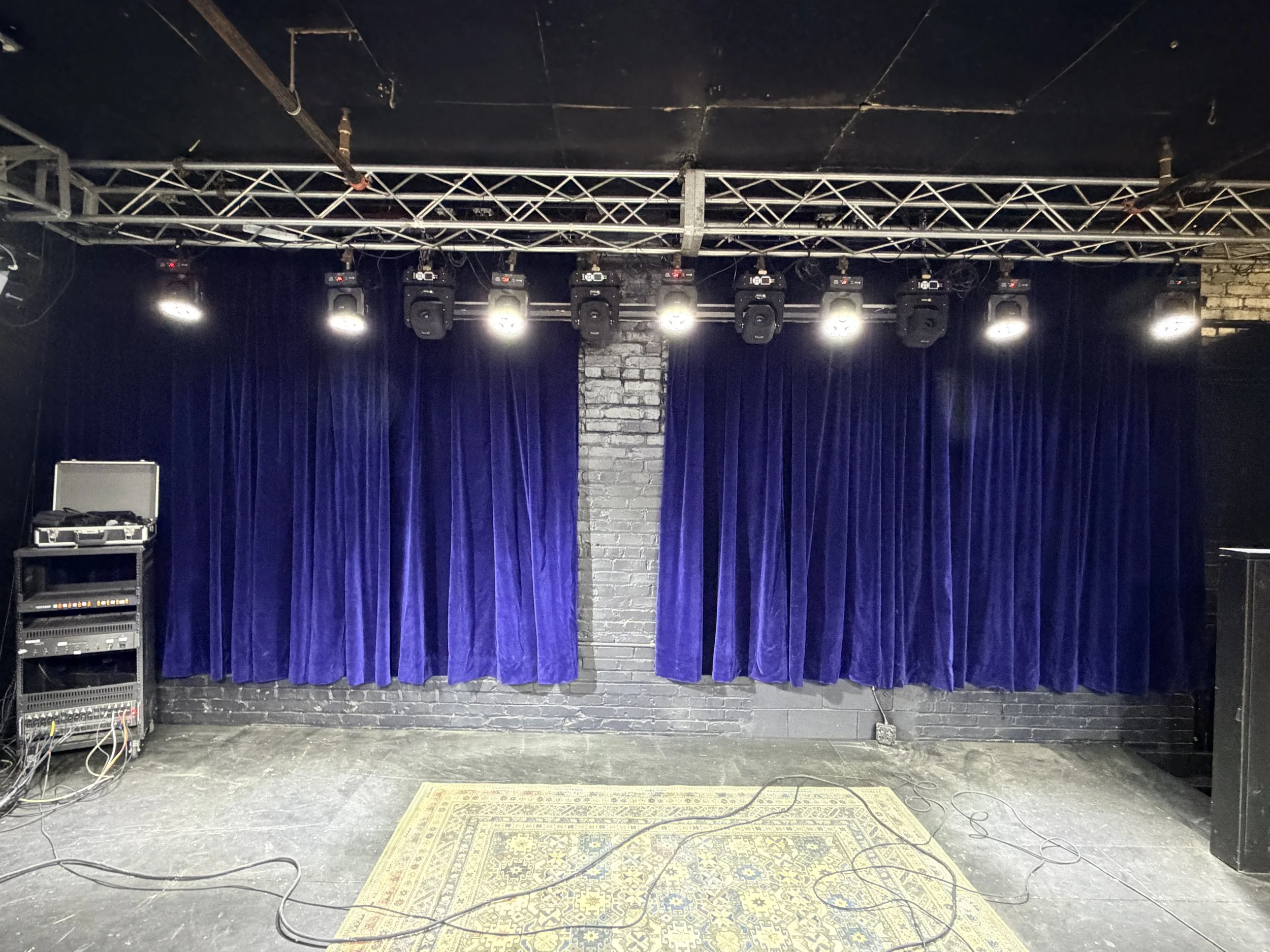

| QTY FIXTURE | TYPE POSITION MOUNTING NOTES |
|---|---|
| 7 ColorKey Wash Hex 12 | LED Moving Wash Upstage Truss RGBAW/UV |
| 7 ColorKey Wash Hex 12 | LED Moving Wash Front of Stage TBD RGBAW/UV |
| 4 ColorKey Wash Hex 12 | LED Moving Wash 2 x SR, 2 x SL Side Fills Truss RGBAW/UV |
| 4 ColorKey Mover Spot 150 | LED Moving Spot Upstage Truss Gobo/Beam Effects |
| 1 Eliminator MBDMX+ | Mirror Ball House TBD |
| 3 ADJ Pinspot LED Quad | Mirror Ball Pinspots House TBD |
| 1 ColorKey Droid FX | Multi-Effect House TBD |
| 1 ADJ Entour Faze | Atmospherics Upstage On-Deck Advance Notice Req’d |
TOURING / GUEST LD INFORMATION
One DMX universe available for guest control
Guest LDs may patch into house Art-Net/sACN network via Cat6 or Wi-Fi
FOH control location: Back of house
Use of haze and house fixtures permitted (advance notice required)
Visiting consoles supported if output via Art-Net or sACN
ADDITIONAL NOTES
Fixture mounting and FOH position pending final installation
Mirror ball, pinspot, and front wash mounting methods TBD
House LD contact and load-in information to be added
